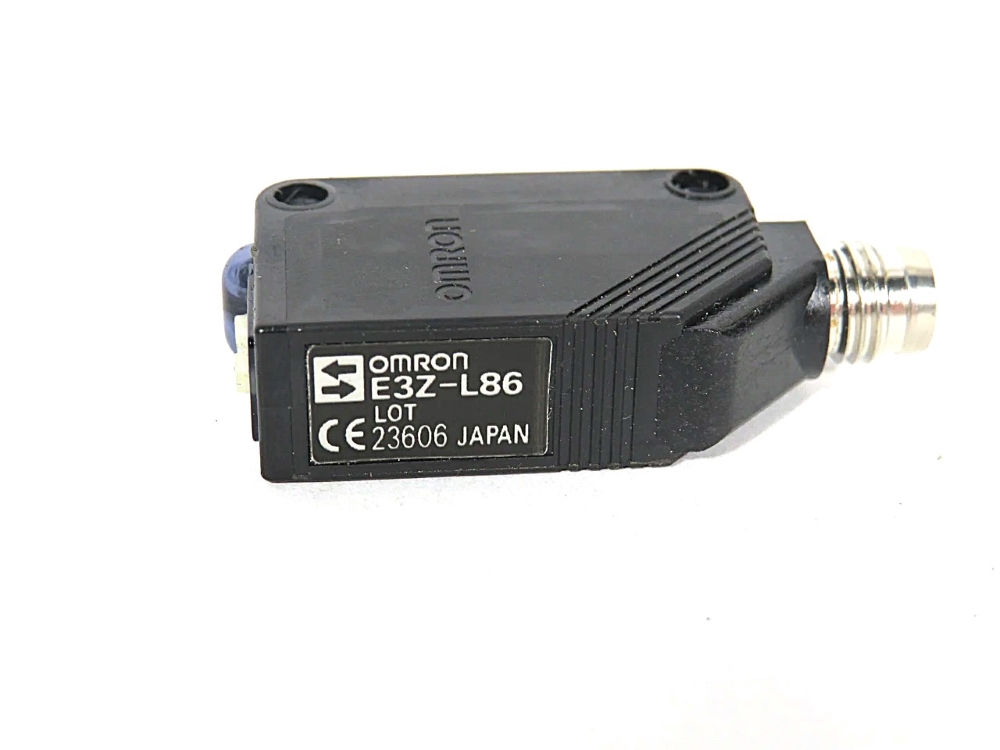

E3Z-L86-IL2 Omron Photoelectric Sensor

Specification
Details
Model Number
E3Z-L86-IL2
Sensor Type
Photoelectric Sensor
Sensing Method
Diffuse Reflective, Narrow Beam
Sensing Distance
90 mm nominal; 60–120 mm range
Light Source
Red LED, 650 nm
Output Type
PNP Open Collector
Output Mode
Light-ON / Dark-ON Selectable
Supply Voltage
10–30 V DC
Current Consumption
30 mA max.
Maximum Load Current
100 mA
Response Time
1 ms max.
Connection Type
M8, 4-pin connector
Cable Length
0 m; connector type
IO-Link Version
1.1
IO-Link Baud Rate
COM2, 38.4 kbps
Minimum Cycle Time
2.3 ms
Protection Rating
IP67
Housing Material
PBT
Sensor Shape
Rectangular
Dimensions (W × H × D)
Approx. 10.8 × 31 × 20 mm
Spot Diameter
Approx. 2.5 mm at 90 mm
Minimum Detectable Object
Approx. 0.1 mm copper wire
Switching Frequency
Not specified in the cited model data
Operating Temperature
−25 to +55°C
Weight
Approx. 20 g, packed M8 model
