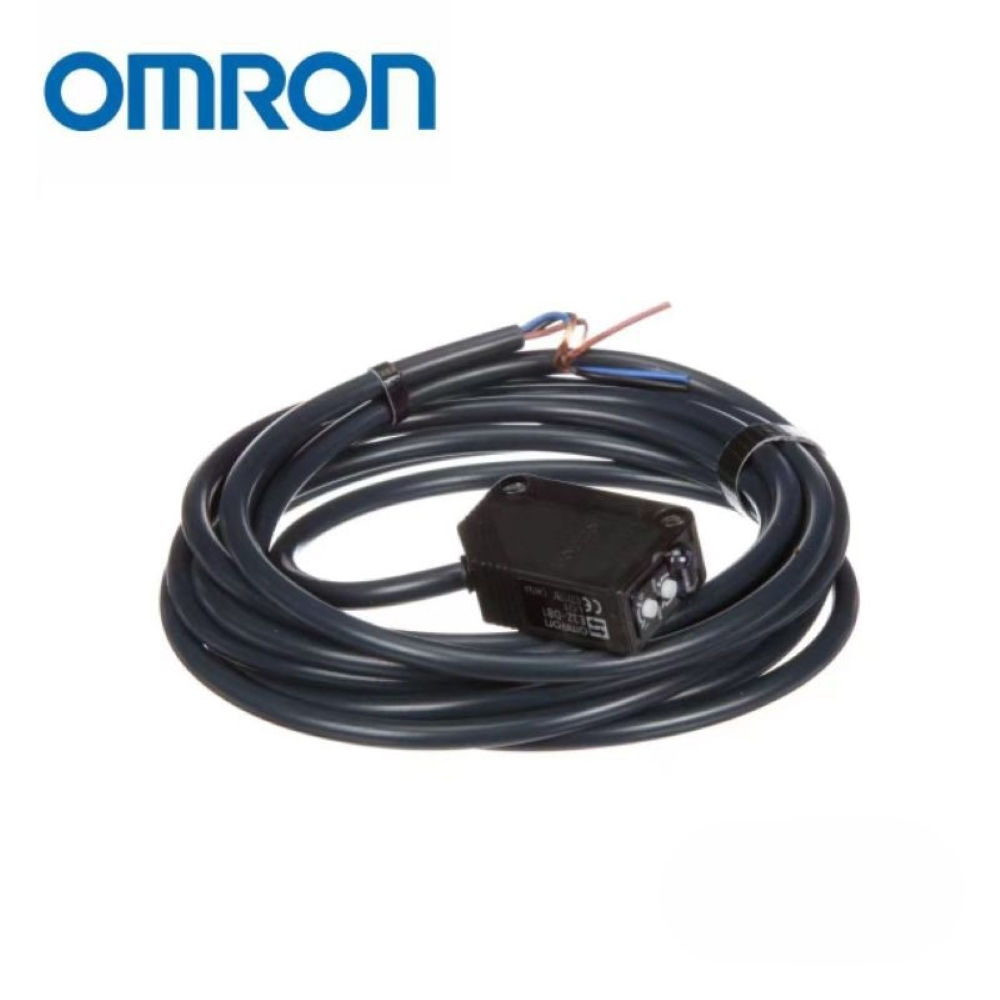

E3Z-T81-IL3 Omron Photoelectric Sensor

Specification
Details
Brand
Omron
Model
E3Z-T81-IL3 2M
Sensing method
Through-beam
Sensing distance
15 m
Standard sensing object
Opaque object, 12 mm diameter minimum
Output type
PNP open collector
Output current
100 mA maximum
Supply voltage
10–30 V DC
Light source
Infrared LED
Wavelength
870 nm
IO-Link version
1.1
IO-Link baud rate
COM3, 230.4 kbps
Minimum cycle time
1 ms
Response time
1 ms maximum
Operation mode
Light ON / Dark ON selectable
Cable length
2 m
Connection
Pre-wired cable
Housing material
PBT
Protection rating
IP67
Dimensions (W × H × D)
10.8 × 31 × 20 mm
Emitter current consumption
25 mA maximum
Receiver current consumption
25 mA maximum
Protective circuits
Output short-circuit, output reverse-polarity and power-supply reverse-polarity protection
