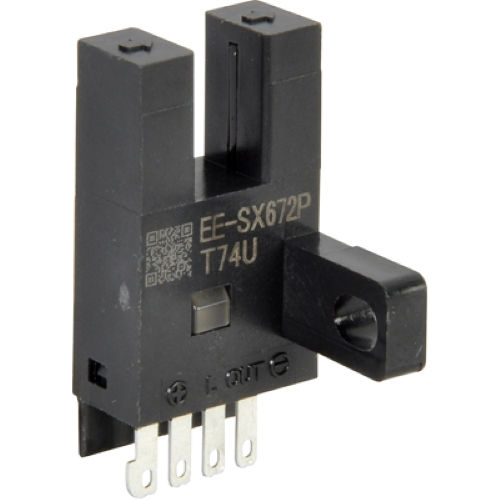

Electro Automation Industries Offers EE-SX672P Omron Photoelectric Sensor

Technical Specifications
Model
EE SX672P
Product Type
Photomicrosensor
Series
EE SX47 SX67 Series
Sensing Method
Through Beam Slot Type
Housing Style
T Shaped Slot Center 7 mm
Slot Width
5 mm
Light Source
Infrared LED 940 nm
Standard Sensing Object
Opaque Object 2 mm x 0.8 mm Minimum
Output Type
PNP Open Collector
Operation Mode
Light ON And Dark ON Selectable
Connection Method
4 Pin System Connector
Operating Voltage
5 to 24 V DC
Maximum Load Current
50 mA
Current Consumption
12 mA Maximum
Response Time
0.17 ms Maximum
Response Frequency
3 kHz Typical
1 kHz Minimum
Differential Travel
0.025 mm Maximum
Housing Material
PBT Plastic
Lens Material
Polycarbonate
Protection Class
IP50
Operating Temperature
Minus 25 Deg C to 55 Deg C
Storage Temperature
Minus 30 Deg C to 80 Deg C
Protection Features
Output Short Circuit Protection
Indicators
Red Operation Indicator
