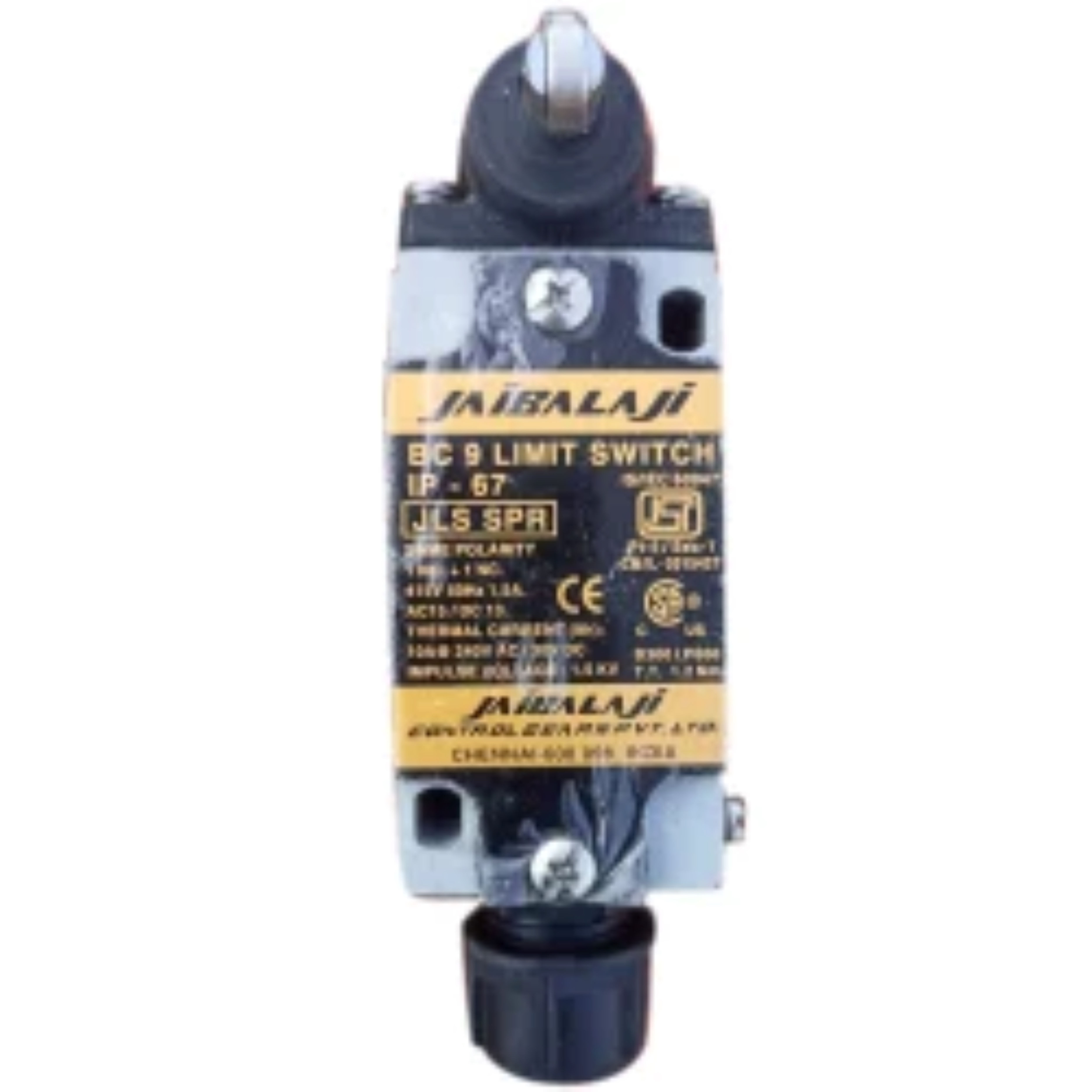

Electro Automation Industries Offers JLSSPR BC9T Jai Balaji Limit Switch

JLSSPR BC9T Jai Balaji Limit Switch Specifications
Brand Jai Balaji
Model JLSSPR
Series BC9T
Type Oil Tight Limit Switch
Operating Head Side Push
Actuator Roller Type
Roller Size 17 mm Diameter and 4.7 mm Thickness
Roller Position Can Be Changed From Horizontal To Vertical Position
Contact Configuration 1NO 1NC
Contact Type SPDT Changeover
Contact Material Twin Break Silver Contacts
AC15 Rating 6A at 110V AC
AC15 Rating 3A at 220V AC
AC15 Rating 1.5A at 400V AC
AC15 Rating 1.2A at 550V AC
DC13 Rating 0.2A at 110V DC
DC13 Rating 0.1A at 220V DC
Operating Frequency 2500 Operations Per Hour
Mechanical Life 20 Million Operations
Protection Class IP67
Enclosure Die Cast
Terminal Capacity 2.5 Sq mm Solid or Stranded Wire
Weight 300 g Approx
Standards IS 13947 Part 5 Section 1 and IEC 947 5 1
