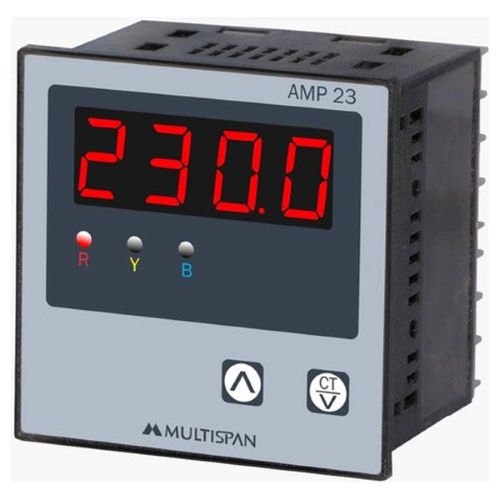

Electro Automation Industries Offers Multispan Ams Meter Three Phase AMP-23

Multispan AMS Meter Three Phase AMP-23 Specifications
Model: AMP-23
Type: Three Phase Ampere Meter
Measurement: Three Phase Current Measurement with Auto Scrolling Display
Input Current:
0.1 to 5A AC
CT Primary: 5 to 9999A Selectable
CT Secondary: 5A or 1A Selectable
Accuracy: Class 0.5
Display:
4 Digit, 1 Line, 7 Segment LED Display
0.56 Inch Red LED
Display Parameters:
L1 Current
L2 Current
L3 Current
Average Current
LED Indications:
L1
L2
L3
AVG
Keys:
SET/ENT
INC
DEC
Power Supply:
100 to 270V AC/DC
50/60 Hz
Power Consumption: 3 VA Maximum
Mounting Type: Panel Mount
Dimensions: 72 x 72 x 45 mm
Panel Cutout: 68 x 68 mm
Protection Level:
IP65 Front Panel Optional
Operating Temperature: 0 Degree C to 55 Degree C
Humidity: Up to 95 Percent RH Non Condensing
Body Material: Polycarbonate
Terminal Screw Size: M3.5
Wire Size: 26 to 14 AWG
Weight:
Unpacked: Approx. 70 g
Packed: Approx. 90 g
Applications:
Electrical Control Panels
Power Distribution Panels
Generator Panels
Transformer Monitoring
Industrial Automation Systems
Motor Control Centers
Energy Monitoring Systems
