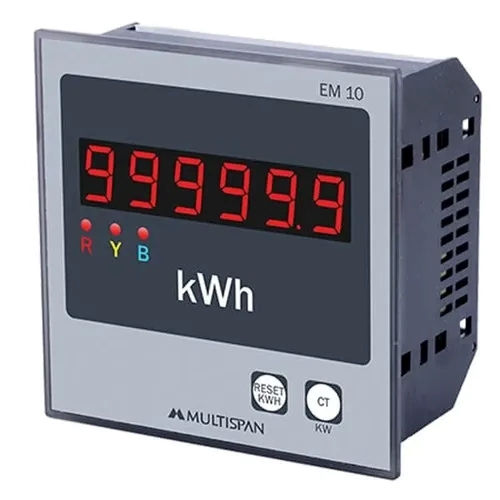

Electro Automation Industries Offers Multispan Energy Meter KWH Three Phase EM-10


Multispan Energy Meter KWH Three Phase EM-10 Specifications
Model
EM-10
Product Type
Three Phase Digital Energy and Power Meter
Mounting Type
Panel Mount
Panel Size
96 mm x 96 mm x 43 mm
Panel Cutout
92 mm x 92 mm
Display
8 Digit 7 Segment Red LED Display
Displays Active Energy KWH
Displays Active Power KW
Wiring System
3 Phase 4 Wire
Voltage Input
30 V AC to 300 V AC Line to Neutral
50 V AC to 520 V AC Line to Line
Current Input
30 mA to 5 A AC
External Current Transformer Input
CT Primary Programmable from 5 A to 9999 A
CT Secondary 5 A Factory Set
Measurement Range
Active Power 0.000 to 9999 kW
Active Energy 0 to 99999999 kWh
Accuracy
Class 1.0
Frequency
45 Hz to 65 Hz
Power Supply
100 V AC DC to 270 V AC DC
50 Hz or 60 Hz
Power Consumption Approximately 3 VA
Output
Optional Pulse Output
External 24 V DC
Current Capacity 25 mA
Pulse Width 50 ms to 500 ms
Protection
IP65 Front Panel
Operating Temperature
0 Deg C to 50 Deg C
Storage Temperature
0 Deg C to 55 Deg C
Humidity
Up to 95 Percent RH Non Condensing
Applications
Electrical Control Panels
Power Distribution Systems
Industrial Automation
Energy Monitoring
Transformer Monitoring
MCC Panels
DG Set Panels
Industrial Power Management Systems
