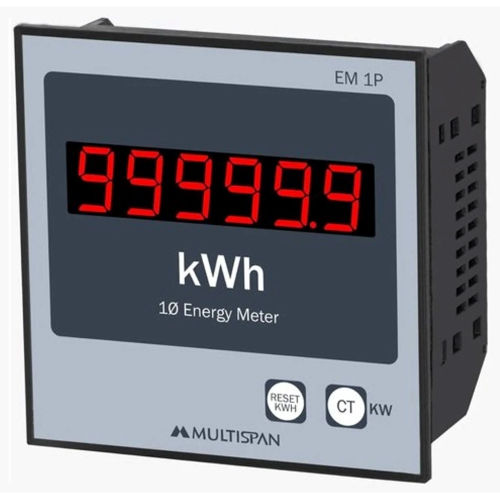

Electro Automation Industries Offers Multispan KWH Meter Single Phase EM-1P

Multispan KWH Meter Single Phase EM-1P Specifications
Model: EM-1P
Type: Single Phase Energy Meter
Network Connection:
1 Phase 2 Wire
Display:
8 Digit, 7 Segment, 0.5 Inch Red LED Display
Measured Parameters:
Active Energy kWh
Active Power kW
Voltage Input:
30 to 300V AC Line to Neutral
CAT III
Current Input:
5A Through External CT
CT Primary Programmable from 5A to 9999A
CT Secondary 5A
Active Power Range:
0.000 to 9999 kW
Active Energy Range:
0.000 to 99999999 kWh
Frequency Range:
45 to 65 Hz
Accuracy:
Class 0.5
Communication:
RS 485 Modbus RTU Available on Request
Pulse Output:
Energy Pulse Output Available
Power Supply:
100 to 270V AC
50/60 Hz
Power Consumption:
Approx. 3 VA to 4 VA
Display Reset:
Front Keypad Reset Facility
Mounting Type:
Panel Mount
Dimensions:
96 x 96 x 43 mm
Panel Cutout:
92 x 92 mm
Protection:
IP65 Front Panel Optional
Operating Temperature:
0 Degree C to 50 Degree C
Storage Temperature:
Minus 10 Degree C to 70 Degree C
Humidity:
Up to 95 Percent RH Non Condensing
Enclosure Material:
Flame Retardant Polycarbonate
Applications:
Electrical Control Panels
Power Distribution Systems
Energy Monitoring Systems
Industrial Automation Panels
Generator Panels
Commercial Buildings
Instrumentation Panels
Transformer Monitoring Systems
Features
Single Phase Energy and Power Measurement
Programmable CT Ratio
High Accuracy Class 0.5 Metering
Bright 8 Digit LED Display
RS 485 Modbus Communication Option
Energy Pulse Output
Wide Auxiliary Supply Range
Suitable For Industrial And Commercial Energy Monitoring Applications
