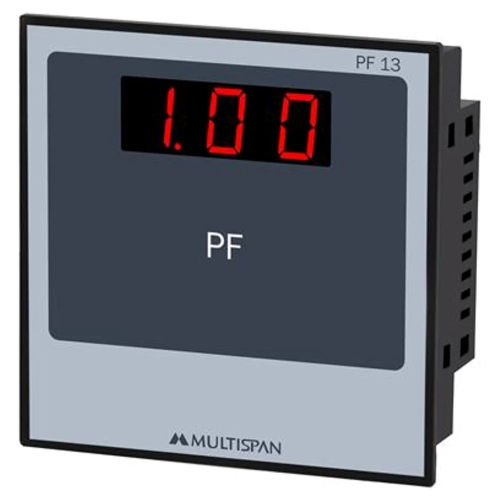

Electro Automation Industries Offers Multispan Power Factor Indicator Three Phase PF-13

Multispan Power Factor Indicator Three Phase PF-13 Specifications
Model: PF-13
Type: Three Phase Power Factor Indicator
Network Type:
Three Phase Three Wire
Three Phase Four Wire
Display:
4 Digit 7 Segment Red LED Display
Measurement Range:
0.001 Lag to 1.000 to 0.001 Lead
Accuracy: Class 1.0
Input Voltage:
100 to 550V AC Line to Line
Programmable PT Ratio
Input Current:
5A AC Nominal
1A AC Optional
Programmable CT Ratio
Display Indication:
Power Factor
Lead Indication
Lag Indication
Sampling Rate: Approximately 1 Second
Programming:
CT Primary Programmable
CT Secondary Selectable
PT Primary Programmable
PT Secondary Selectable
Auxiliary Supply:
100 to 270V AC/DC
50/60 Hz
Power Consumption: Less Than 5 VA
Mounting Type: Panel Mount
Front Size: 96 x 96 mm
Panel Cutout: 92 x 92 mm
Display Height: 0.56 Inch
Operating Temperature:
0 Degree C to 55 Degree C
Storage Temperature:
Minus 10 Degree C to 70 Degree C
Humidity:
Up to 95 Percent RH Non Condensing
Protection:
IP65 Front Panel Optional
Enclosure Material:
Flame Retardant Polycarbonate
Weight:
Approx. 250 g
Applications:
APFC Panels
Electrical Distribution Panels
Generator Panels
Power Monitoring Systems
Industrial Automation Panels
Energy Management Systems
Substations
Motor Control Centers
Features
True Three Phase Power Factor Measurement
Lead And Lag Power Factor Indication
Programmable CT And PT Ratios
High Accuracy Digital Measurement
Bright LED Display
Wide Auxiliary Power Supply Range
Suitable For Industrial And Commercial Power Monitoring Applications
Easy Panel Mount Installation
