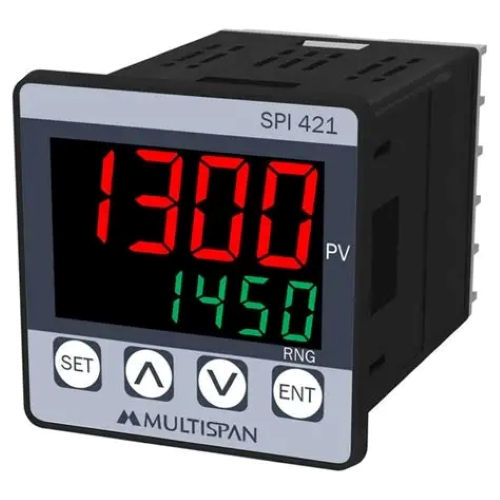

Electro Automation Industries Offers Multispan Single Mode Process Indicator SPI-421

Multispan SPI-421 Single Mode Process Indicator Specifications
Product Type: Single Mode Process Indicator
Model: SPI-421
Display Type: 4 Digit, 7 Segment LED Display
Mounting Type: Panel Mount
Input Specifications
Input Signals: 4–20 mA DC
Input Signals: 0–20 mA DC
Input Signals: 0–10 V DC
Universal Analog Input Compatibility
User Programmable Input Scaling
Selectable Decimal Point Position
Reverse Scaling Function
Display Specifications
4 Digit High Brightness LED Display
Display Range: -999 to 9999
High Visibility Process Value Indication
Configurable Resolution Settings
Operating Mode
Process Indicator Mode
Linear Signal Monitoring
Analog Process Value Display
Accuracy Specifications
Accuracy: ±1 Percent Full Scale
Stable and Reliable Measurement Performance
High Resolution Measurement
Power Supply
Supply Voltage: 100V to 270V AC
Frequency: 50/60 Hz
Low Power Consumption
Mechanical Specifications
Instrument Size: 48 mm × 48 mm
Panel Cutout: 44 mm × 44 mm
Enclosure Material: Polycarbonate ABS
Screw Terminal Connections
Compact Panel Mount Design
Environmental Specifications
Operating Temperature: 0°C to 55°C
Storage Temperature: -10°C to 70°C
Relative Humidity: Up to 95 Percent Non-Condensing
Front Protection: IP65
Features
Single Mode Process Indication
Universal Analog Input Support
User Programmable Scaling
Easy Front Key Programming
Compact 48 × 48 mm Size
High Visibility LED Display
Reliable Industrial Performance
Long Service Life
Applications
Process Automation Systems
Pressure Monitoring
Flow Measurement
Level Monitoring
Industrial Control Panels
Water Treatment Plants
Chemical Industries
Manufacturing Facilities
General Process Monitoring Applications
