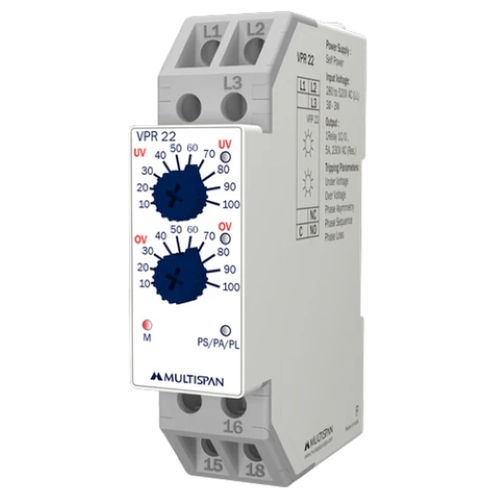

Electro Automation Industries Offers Multispan Volt Protection Relay Din Type Single Phase VPR-22

Multispan Volt Protection Relay DIN Type VPR 22 Specifications
Model
VPR 22
Product Type
Voltage Protection Relay
Mounting Type
DIN Rail Mount
Power Supply
Self Powered
System
3 Phase 3 Wire
Input Voltage
280 V AC to 520 V AC Line to Line
Rated Voltage
415 V AC Line to Line
Protection Functions
Under Voltage Protection
Over Voltage Protection
Phase Loss Protection
Phase Sequence Protection
Phase Asymmetry Protection
Under Voltage Setting
Adjustable By Front Knob
Over Voltage Setting
Adjustable By Front Knob
Phase Loss Setting
Less Than 280 V AC Line to Line
Phase Asymmetry Setting
40 V AC Fixed
Hysteresis
6 V Fixed
Power On Delay
5 Seconds
Trip Delay
5 Second
