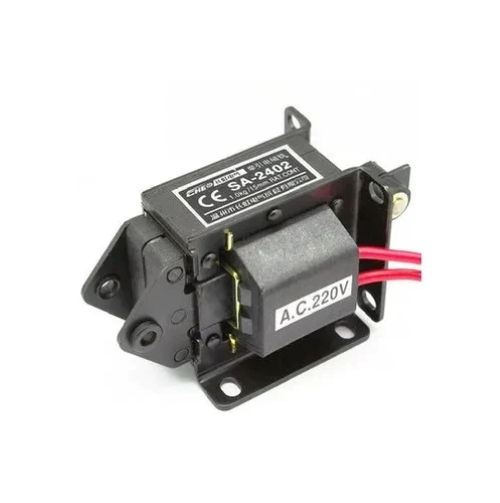

SA-2402 Solenoid Coil (1.0 kg Force) – Technical Specifications
The SA-2402 Solenoid Coil is a heavy-duty AC traction electromagnet designed for industrial automation, machine control, locking mechanisms, and electromechanical actuation applications. It provides a pulling force of approximately 1.0 kg (9.8 N) with reliable operation in continuous and intermittent duty systems.
General Technical Specifications
Model: SA-2402
Product Type: AC Traction Solenoid / Electromagnet
Operating Mode: Pull-Push (Tractive Type)
Pulling Force: 1.0 kgf (9.8 N)
Stroke Length: 15 mm
Rated Voltage: AC 220 V
Frequency: 50/60 Hz
Duty Cycle: Continuous and Intermittent Duty
Protection Class: IP65
Operating Temperature: -40°C to +70°C
Insulation Class: Class B or Equivalent
Insulation Resistance: ≥ 100 MΩ at 500 VDC
Dielectric Strength: 2000 VAC for 1 Minute
Coil Temperature Rise: ≤ 85°C
Construction Material: Silicon Steel Core with Copper Winding
Connection Lead Length: Approx. 200 mm
Weight: Approx. 0.36 kg to 0.50 kg (depending on manufacturer version)
